DeepCool 750W 80 PLUS Gold Rated Fully Modular Power Supply, Thermally Intelligent With PWM Cooling Fan, Highly Efficient on all Rails including 5VSB, Upto 60.0A on +12V Rails to ensure your System’s stability.
Features:
- 80 PLUS® GOLD certified – Up to 91.2% efficiency
- 100% High quality Japanese capacitors
- Full bridge PFC + LLC Resonant converter
- Fully modular with flat cable design
- CircuitShield™ — OVP / UVP / SCP / OPP / OTP
The DQ750M-V2L fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L offers better reliability for your PC system.
Â

The DQ750M-V2L fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L offers better reliability for your PC system.
Â
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Â



Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.
80 PLUS® Gold
80 PLUS® Gold certified – Up to 87~90% efficient (20~100% Loading)

Silent and High Performance Fan
120mm silent fan has temperature control function to keep low noise

Â

Details Discovered
Â

High grade Japanese 105℃ PFC Boost Capacitor

100% Japanese Capacitors

Excellent 1 and 2-stage EMI filter circuit

Highly efficient Active PFC

Excellent manufacturing process

Highly reliable supervisor IC for protections

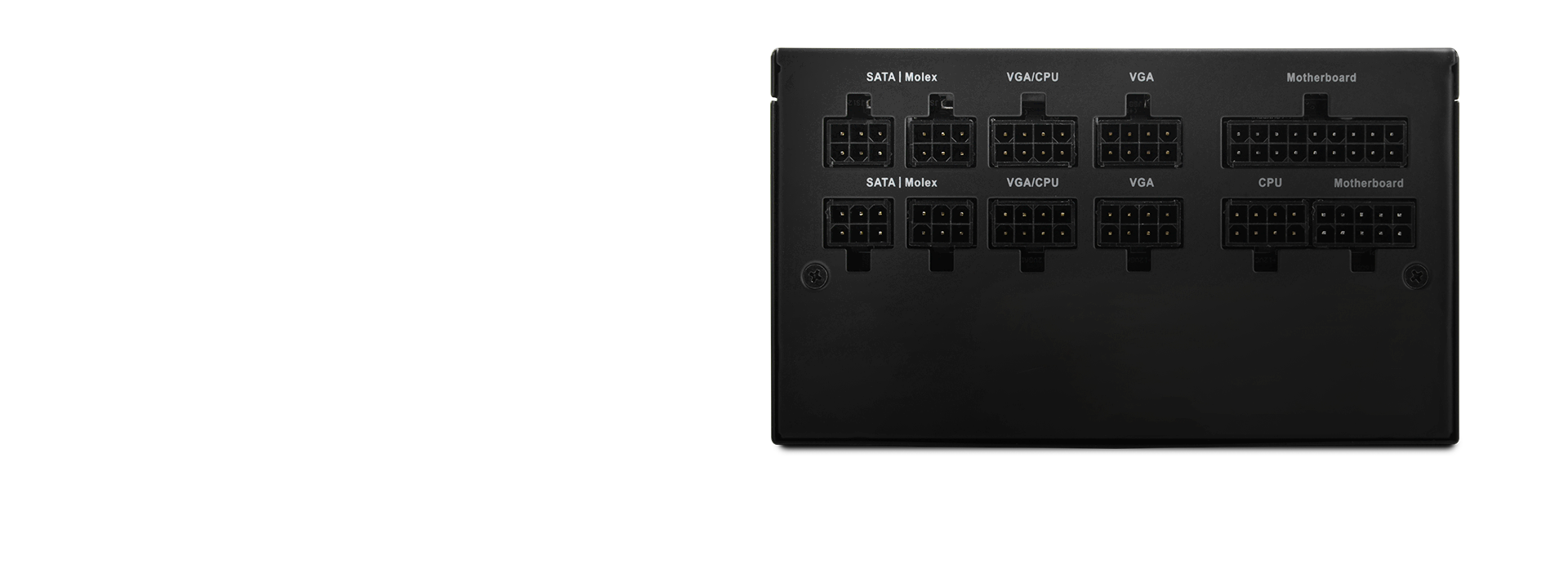

Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
The 100% Japanese capacitors enhanced ripple filtering, improved reliability and product life.
The 100% Japanese capacitors enhanced ripple filtering, improved reliability and product life.
Â



X1

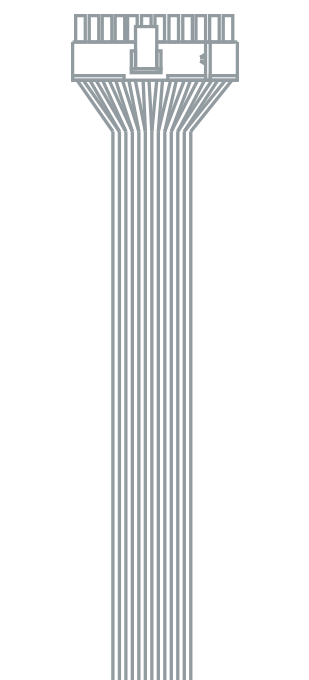

Main Power Connector 24(20+4)Pin

X2

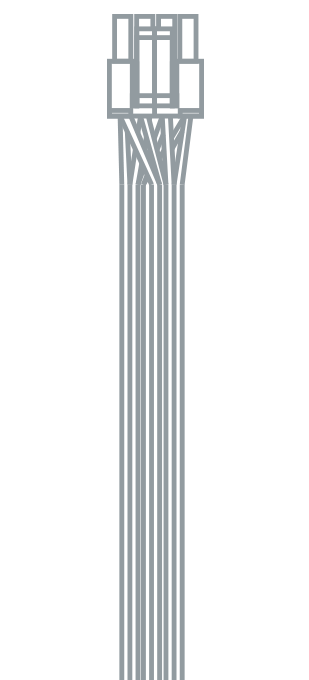

EPS 12V Connector 8(4+4)Pin

X2

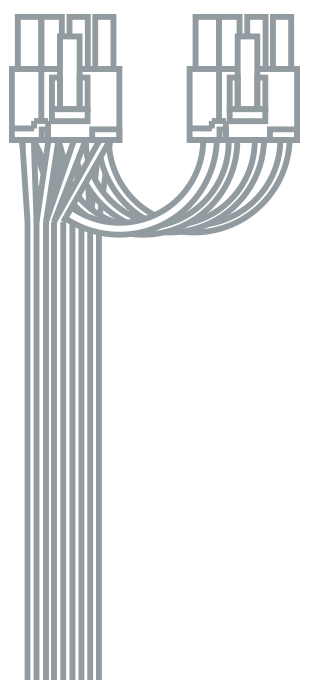

PCI-E (6+2)Pin x2

X1

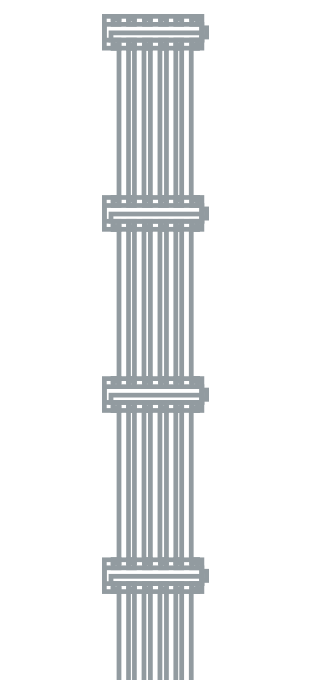

SATA x4

X2
4Pin Peripheral x2 & SATA x2



Specifications:
Model | DQ750-M-V2L |
Type | ATX 12V V2.31 |
Certifications | 80PLUS GOLD |
Dimension | 150×160×86mm (W × L × H) |
Output Capacity | 750W |
Input Voltage | 100-240V |
Input Current | 10.0A |
Input Frequency Range | 47-63Hz |
Fan Size | 120mm |
PFC | Active |
Power Good Signal | 100-500ms |
Hold Up Time | >16ms(80% Loading) |
Efficiency | >90% Under Typical Load (50% Loading) |
Standby Efficiency | ErP Lot 3 2014 |
Protection | OVP/UVP/OCP/SCP/OPP/OTP |
Operation Temperature | 0-40°C |
Regulatory | CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs |
MTBF | 100,000 Hours |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
